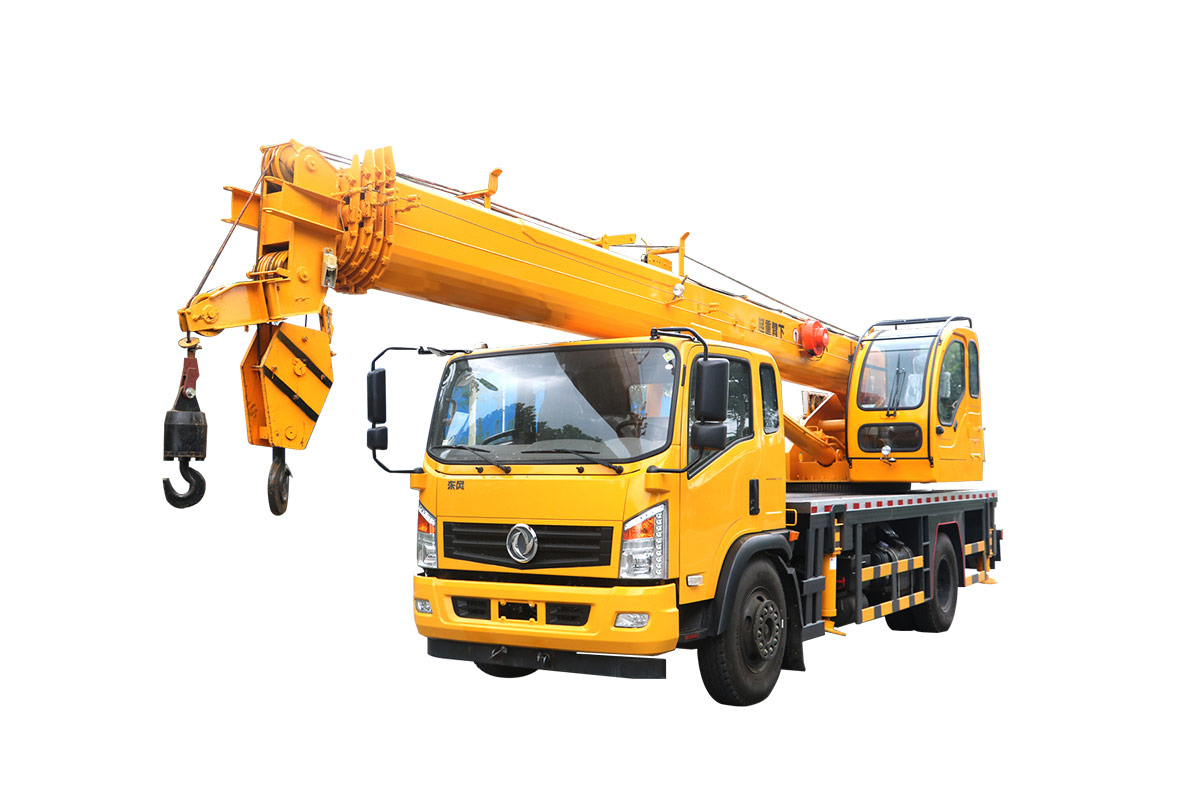

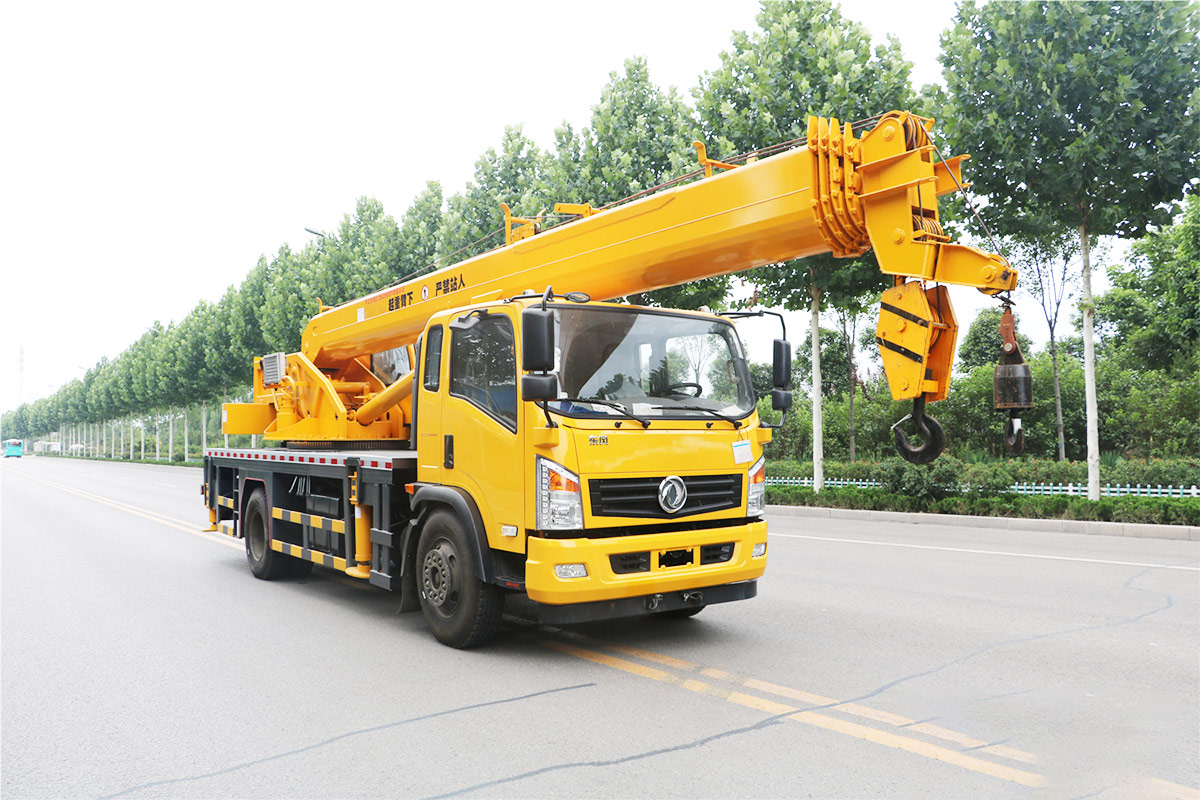

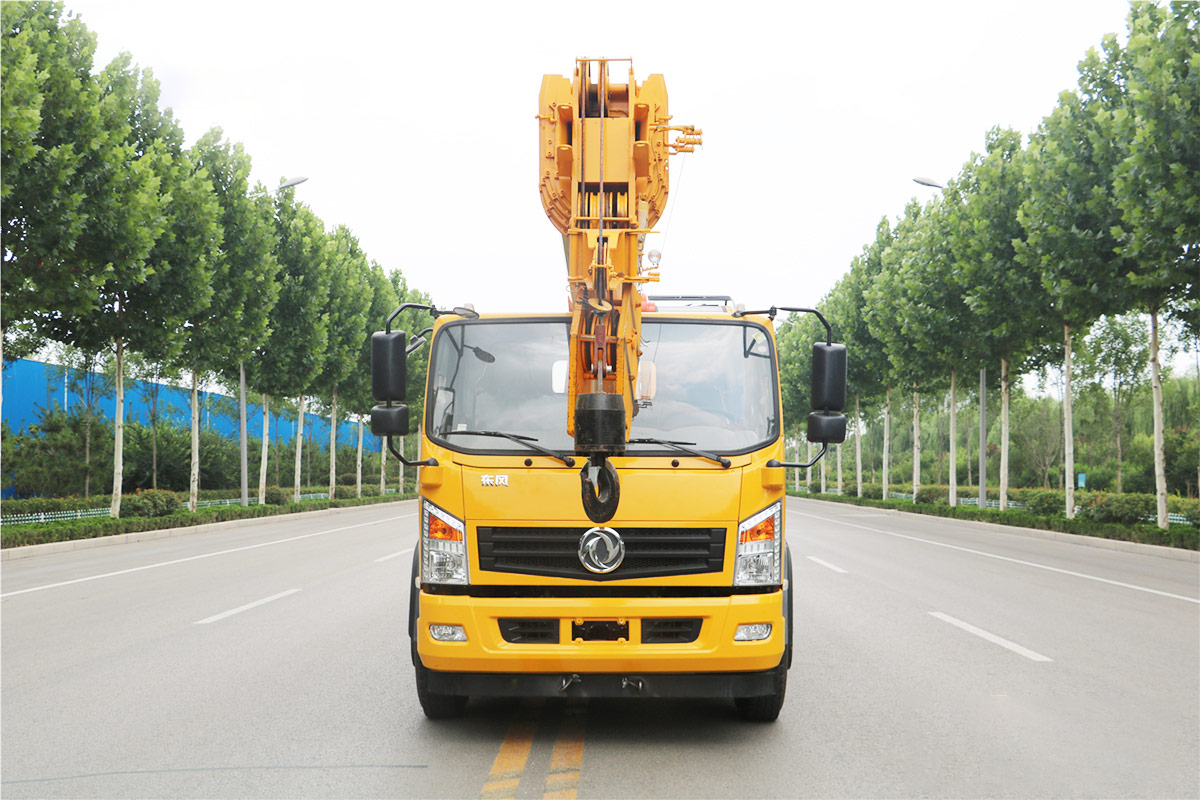

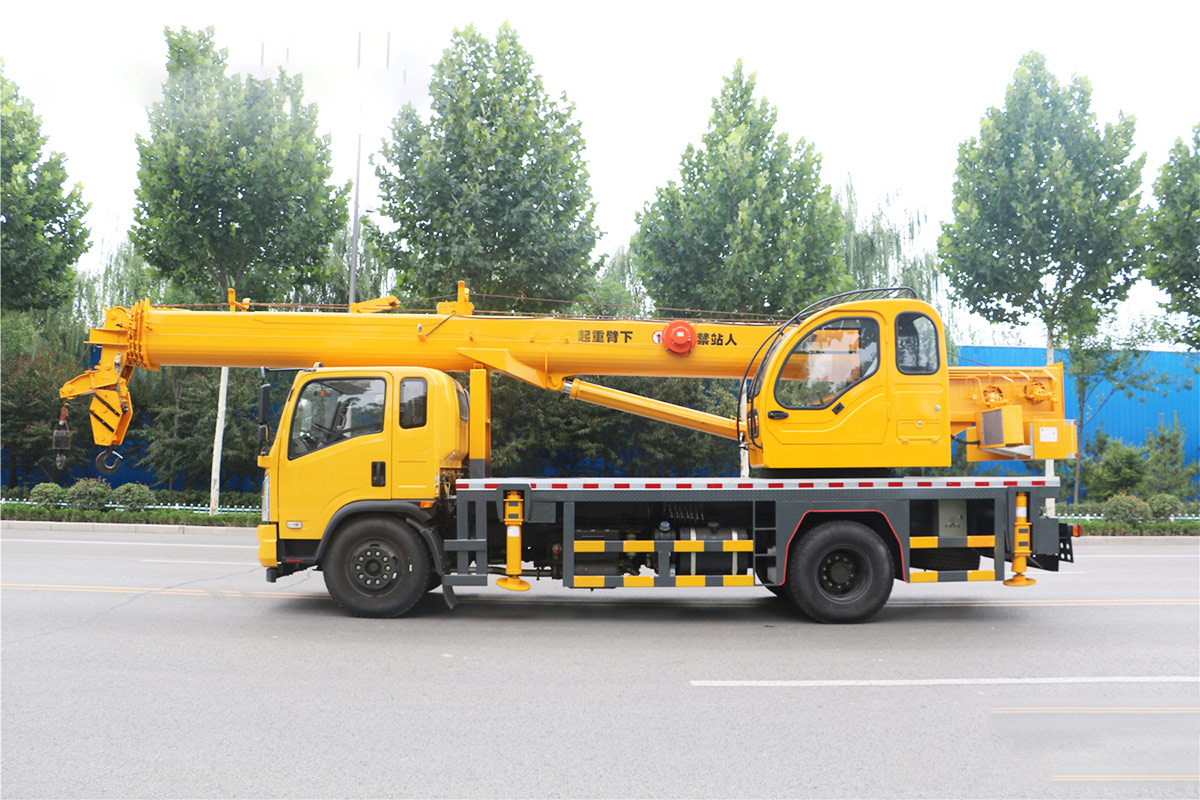

HWDFXC16T Truck Crane

  • Factory direct
  • One-year warranty
Swing speed: 0-3rap
Engine model: Yuchai YCS04180-68
Power: 132kw 180hp

1.Large power, low fuel consumption, noise meets the standard requirements;

2. Luxury full cab and control room with modern streamlined style;

3. The walking plate is fully covered, which is easy to work and repair on the car;

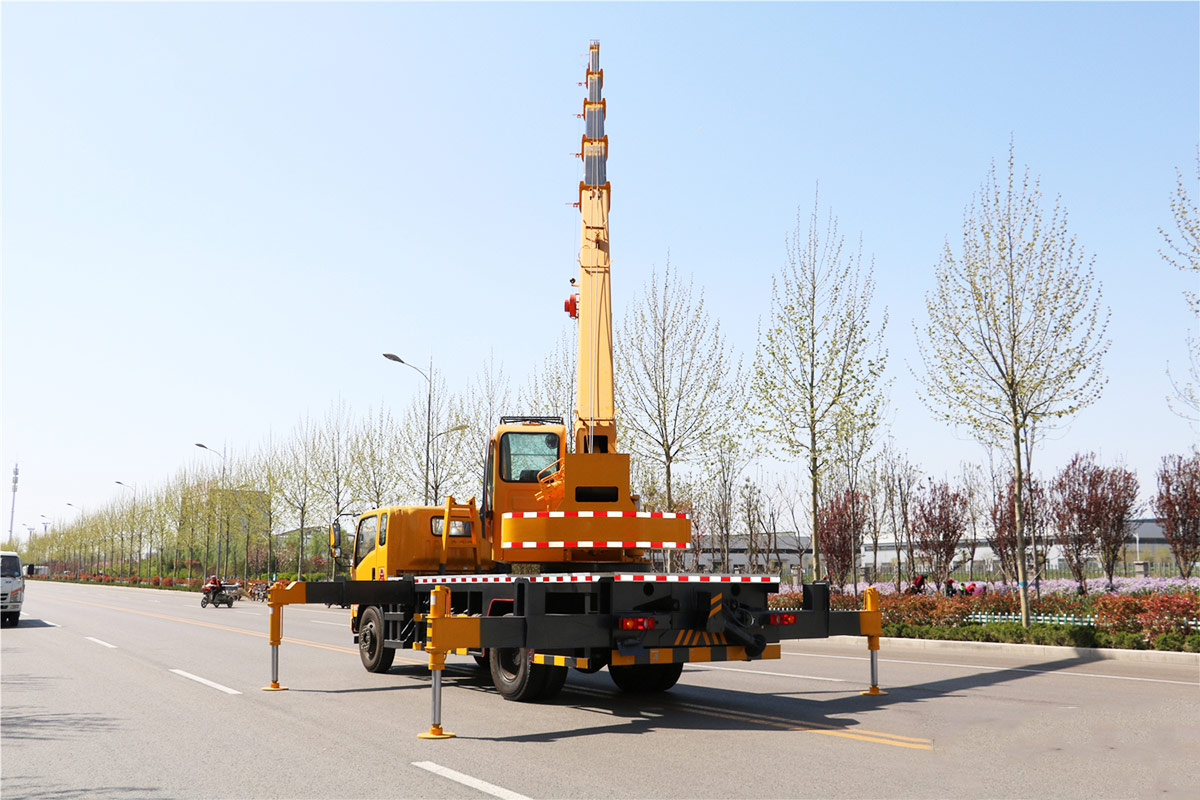

4. The outrigger system adopts double-sided operation, convenient and practical.


ModelHWDFXC16T
Chassis modelsDngfeng4200
Max. loading capacity16000kg
Crane jib U type8m*5 section
Max. lifting height35m
Motor Power15kw
Lifting speedThree pumps combined
Swing speed0-3rap
Engine modelYuchai YCS04180-68
Power132kw  180hp
Tire10.00-R20
Reducer modelPlunger planetary reducer
Steering machanismHydraulic Power Steering
Braking SystemAir brake
GearboxFaust 8-speed gearbox
Weight18000kg
CabXCMG Cab
Emission StandardsChina Ⅵ
Wheelbase4200
Main hoisting mechanism16t Inclined shaft winch
Auxiliary hoisting mechanism12t Inclined shaft winch
Driving speed85km/h

Quote now for the best price.

All products are guaranteed for 12 months!
