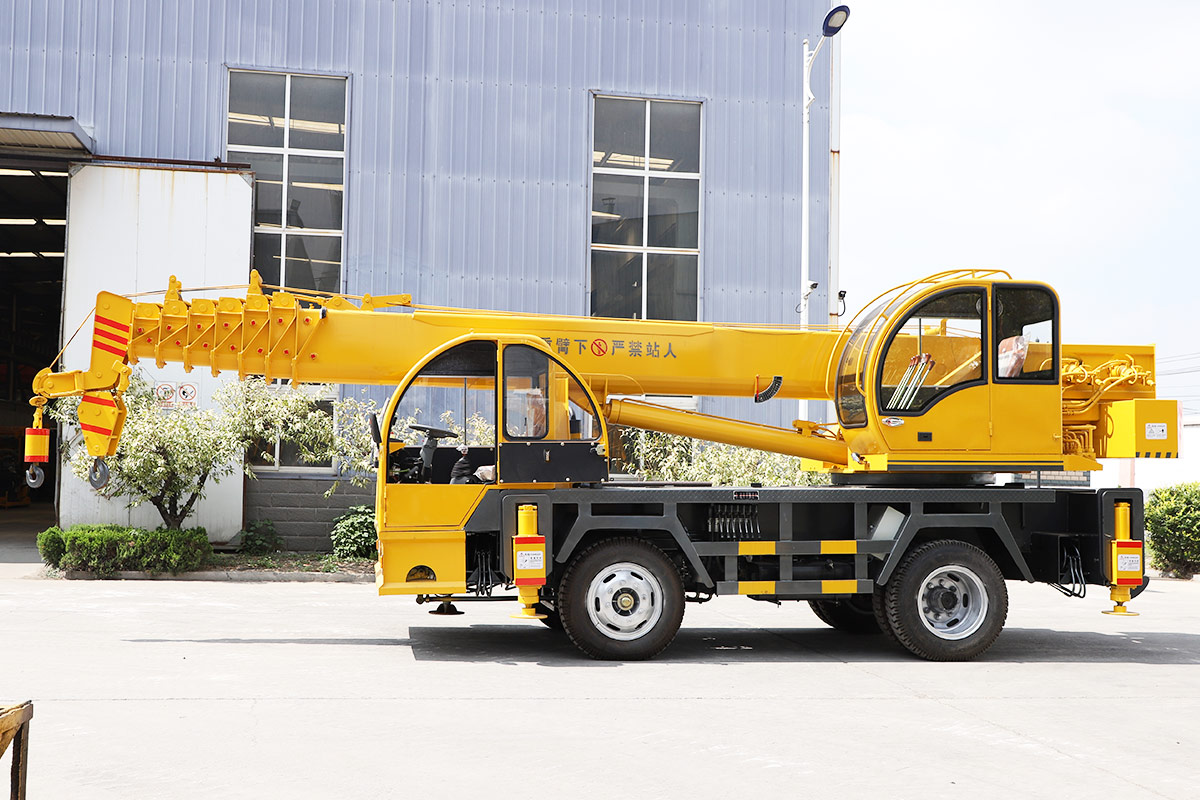

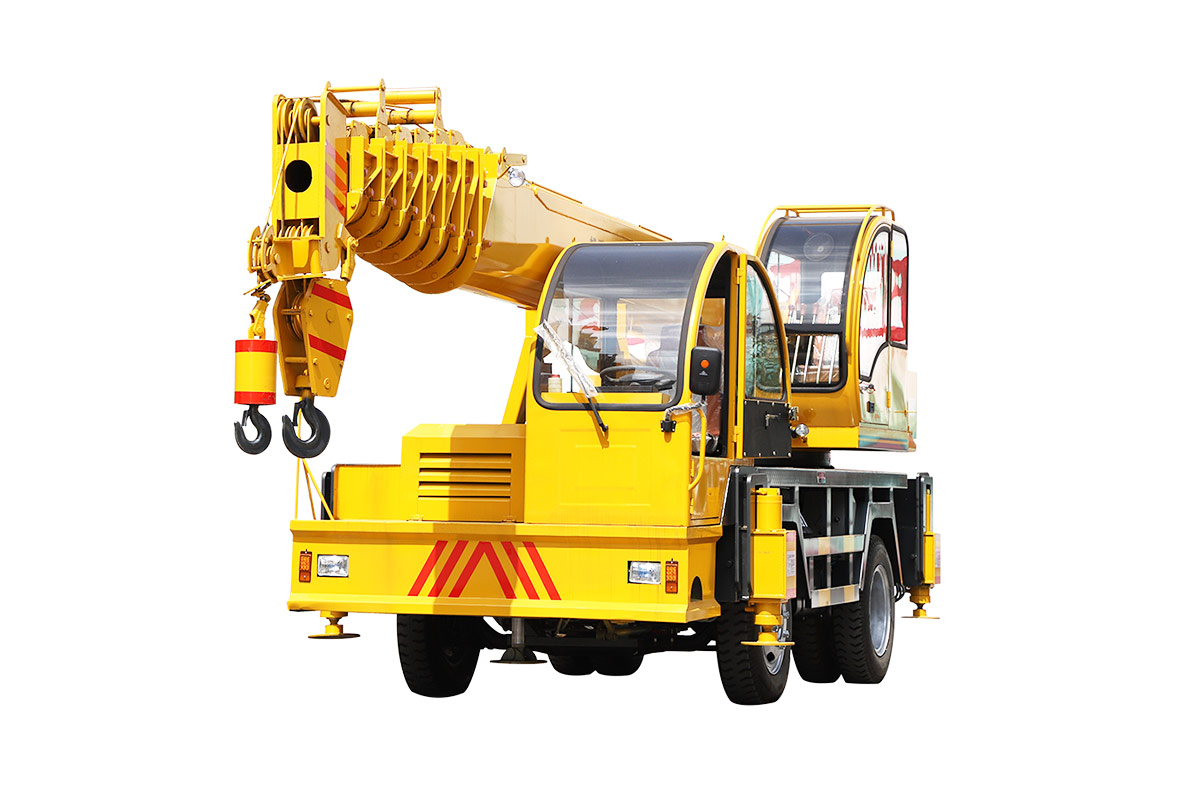

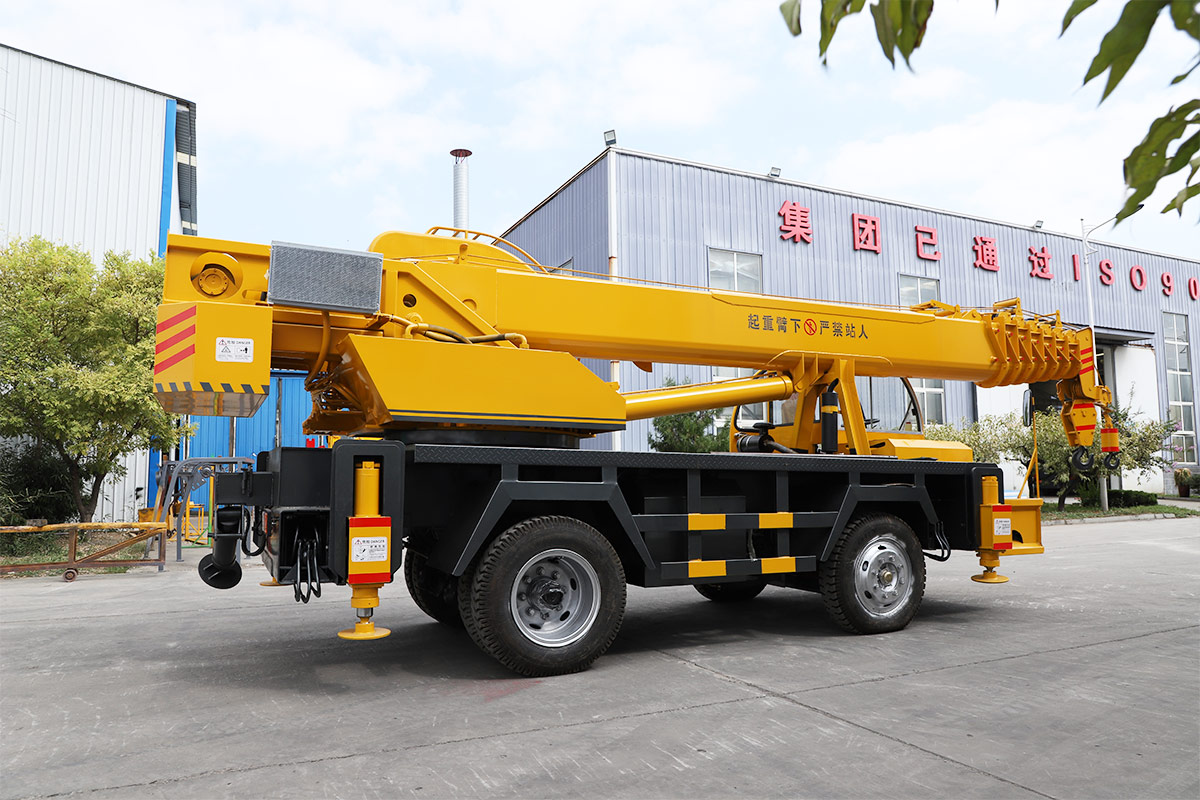

HWQY8T Self-made Truck Crane

  • Factory direct
  • One-year warranty
Lifting Weight: 8000Kg
Lifting Height: 25m、28m
Power: 75KW

Cranes are used for lifting equipment, emergency rescue, lifting, machinery, rescue.


1. The full extension arm is 32m long, and the performance is 5% ahead. The climbing ability is 40%, which makes the machine have good road adaptability.

2. The unique telescopic technology avoids the bending of the core tube and oil cylinder and the breaking of the arm frame caused by misoperation, which improves the safety of the operation.

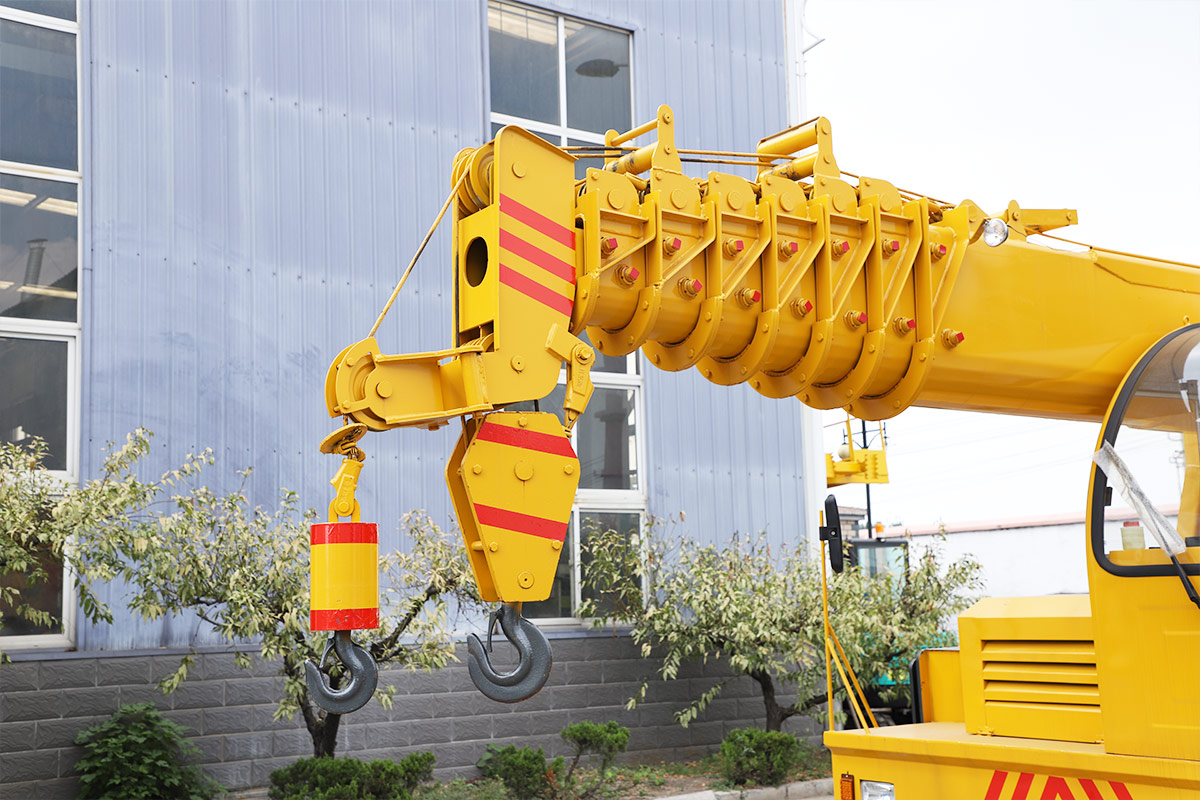

3. The innovative jib system adopts embedded block, plug-in jib head and octagonal jib, which has excellent lifting performance and safe and reliable lifting work.

Overall Dimensions8m*2.06m*3m
Wheelbase2.6/2.8 (optional)
Max. loading capacity8000Kg
Max. lifting height25m、28m
Engine model490
Gearbox model6-speed
Power (kw hp)74KW (100hp)
Emission StandardsChina Ⅲ
Braking SystemAir brake

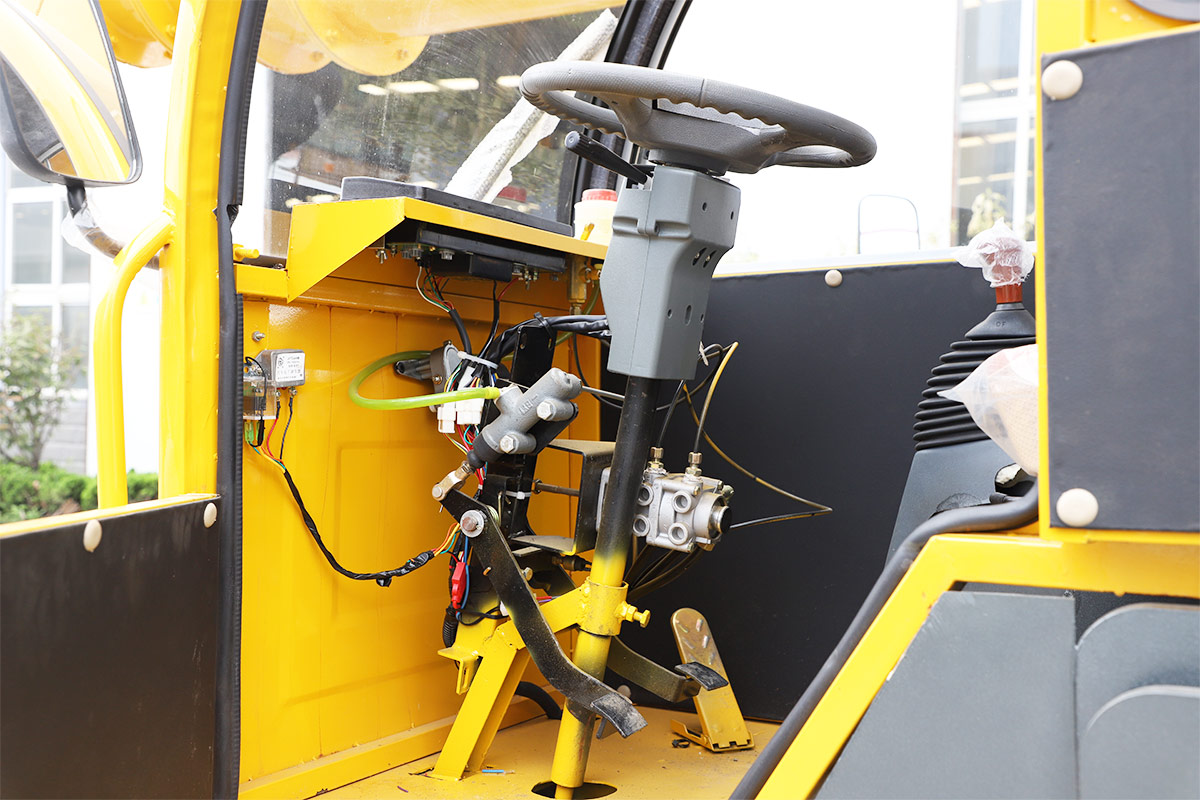

Steering machanismHydraulic Power Steering
Boom section number4m X 7
Main hoisting mechanism8T
Outrigger5 full hydraulic outriggers (single section)
Outrigger span (mm)4800mm
Protective device two way hydraulic control
Number of work lights2
Hydraulic pumpsingle pump
Oil and electricity dual use11kw IP6 pole motor
